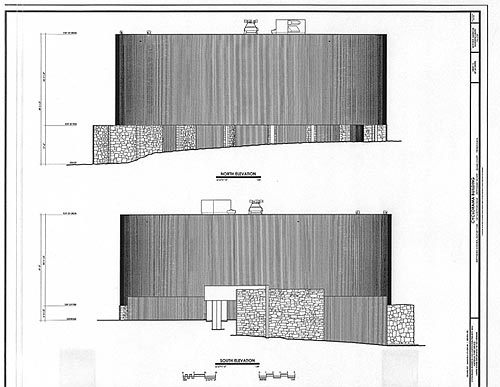

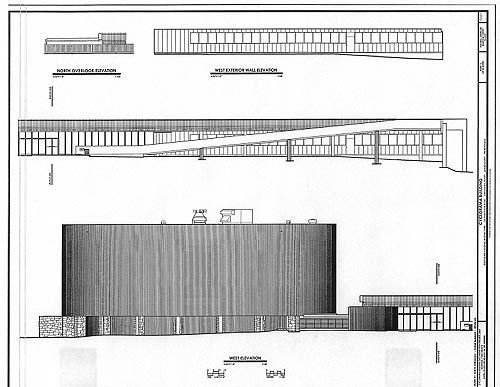

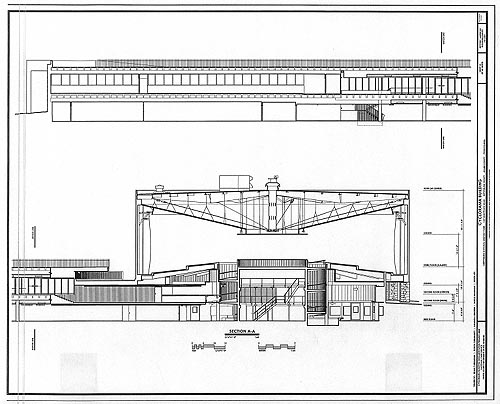

Historic American Buildings Survey (HABS) Drawings [page 1 | page 2] In 2003, the Historic American Buildings Survey of the National Park Service completed full documentation of the Cyclorama Center as part of required mitigation procedures prior to demolition. Measured drawings, large-format photographs, and a written history were prepared by the office and will eventually be transmitted to the Library of Congress, Prints and Photographs Division, where they will remain for perpetuity. The field work was undertaken and the measured drawings were produced by project supervisor Mark Schara, HABS Architect, by Field Supervisor Steven Utz, Architect; and by Architects Brian Carnahan, Robyn Chrabasca, Amanda Loughlin, and Noelle McManus. Below are images taken from the set of twenty-four drawings. Each thumbnail drawing links to a larger-resolution PDF. All images are public record. If larger prints are needed, please contact the webmaster for more information. Only a select number of prints are currently included at this time. The omitted drawings contain details of the interior, including the stairway and circular ramp, as well as some sections, circulation pattern analysis, and a site map.
|
|||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||
|
|
|||||||||||||||||||||||
